Dual Row Rail System
ÇİFT SIRA RAY VASITASIYLA MAKİNE TÜM CEPHELERE RAY ÜZERİNDEKİ HAREKETİYLE ULAŞABİLİR.

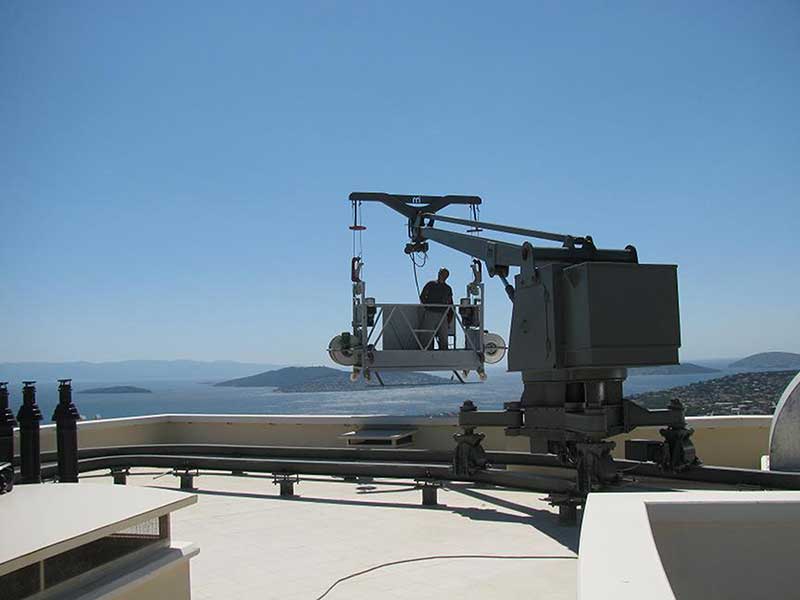

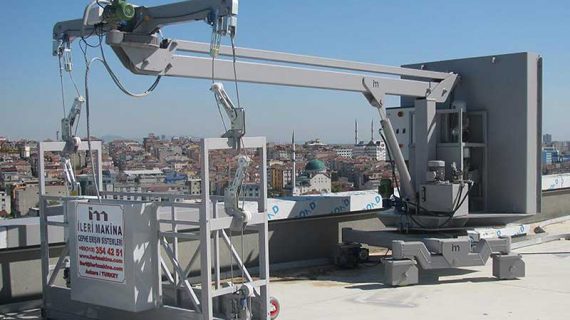

These machines are installed on the terrace floor parapets, having load carrying feature and can reach the desired side of the building by moving on the dual row rail. The selection of the equipment suitable for the architectural structure of the building is examined in place by our technical staff with mechanical engineers and it is aimed to make the best choice for the customer by presenting alternative system examples together with cost analysis. It is possible to adjust the working gap between the basket and the front by means of the hydraulic movement of the boom.
The system moves at a speed of 5 cm/sec on the rails. A total 8 movements can optionally be controlled from the desired point by means of a panel or wireless remote control in the basket. The carriage consists of 4 units; 2 driving and 2 non-driving. We have special types of baskets that can move according the indentations and protrusions of the building. The machine dimensions are designed and manufactured as required by the architectural features and serve the building exclusively
